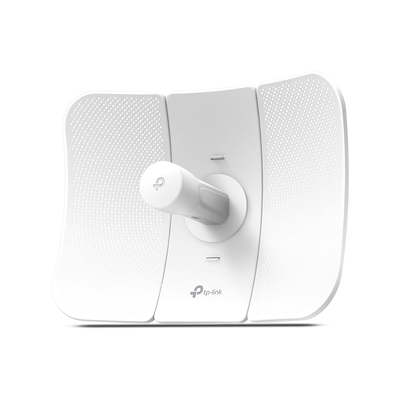

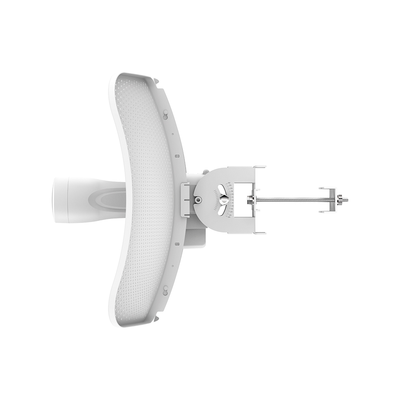

CPE de Exterior de 5 GHz a 150Mbps, Antena direccional de 23dBi, potencia de 23 dBm, PoE pasivo | CPE605
Marca: TP-LINK
Modelo: CPE605
• CPU Qualcomm 560MHz, MIPS 74Kc eficiente
• Antena direccional 23dBi con cobertura 7° azimuth
• Protección ESD 15kV y contra rayos 6kV
• Soporta IEEE 802.11a/n hasta 150Mbps dinámicos
• Diseño IP65 resistente a agua y polvo
• Transmisión 5GHz con potencia ajustable hasta 23dBm
CARACTERÍSTICAS DE HARDWARE
- Procesador: Qualcomm 560MHz CPU, MIPS 74Kc
- Memoria: 64MB DDR2 RAM, 8MB Flash
- Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
- Fuente de Alimentación: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
- Dimensiones (W X D X H): 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
- Ganancia de Antena: 23dBi
- Cobertura de Antena: 7°(Azimuth), 10°(Elevation)
- Protección: 15KV ESD Protection 6KV Lightning Protection
- Cercado: Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
CARACTERÍSTICAS INALÁMBRICAS
- Estándares Inalámbricos: IEEE 802.11a/n
- Protocolo Propietario: TDMA Mode (with Pharos MAXtream enabled)
- Velocidades Inalámbricas: Up to 150Mbps (40MHz, Dynamic) Up to 72.2Mbps (20MHz, Dynamic) Up to 36.1Mbps (10MHz, Dynamic) Up to 18.05Mbps (5MHz, Dynamic)
- Frecuencia: 5.15~5.85GHz
- Potencia de Transmision: Max. 23dBm (Adjustable power by 1dBm)
CARACTERÍSTICAS DE SOFTWARE
- IPv6: Yes
- Configuracion De Red: WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
- Configuraciones Inalámbricas: Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Administración: Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
- Herramientas de sistema: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
- Optimizaciones a Nivel de Sistema: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES
- Dimensions(W x D x H): 85.8×43.9×29.7 mm
- Interfaces: 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
- Botón: Remote Reset Button
- Power Status LEDs: Green
- Input: 100-240VAC, 50/60Hz
- Output: 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
- Eficiencia: >84.29%
- Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTROS
- Certificacion: CE, FCC, RoHS, IP65
- Contenidos del Paquete: Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
- Requisitos del Sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
- Ambiente: Operating Temperature: -40°C~70°C (-40°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
